Marley MkII Rev.b

Headphones amplifier

The intimacy of Hi-Fi pleasure

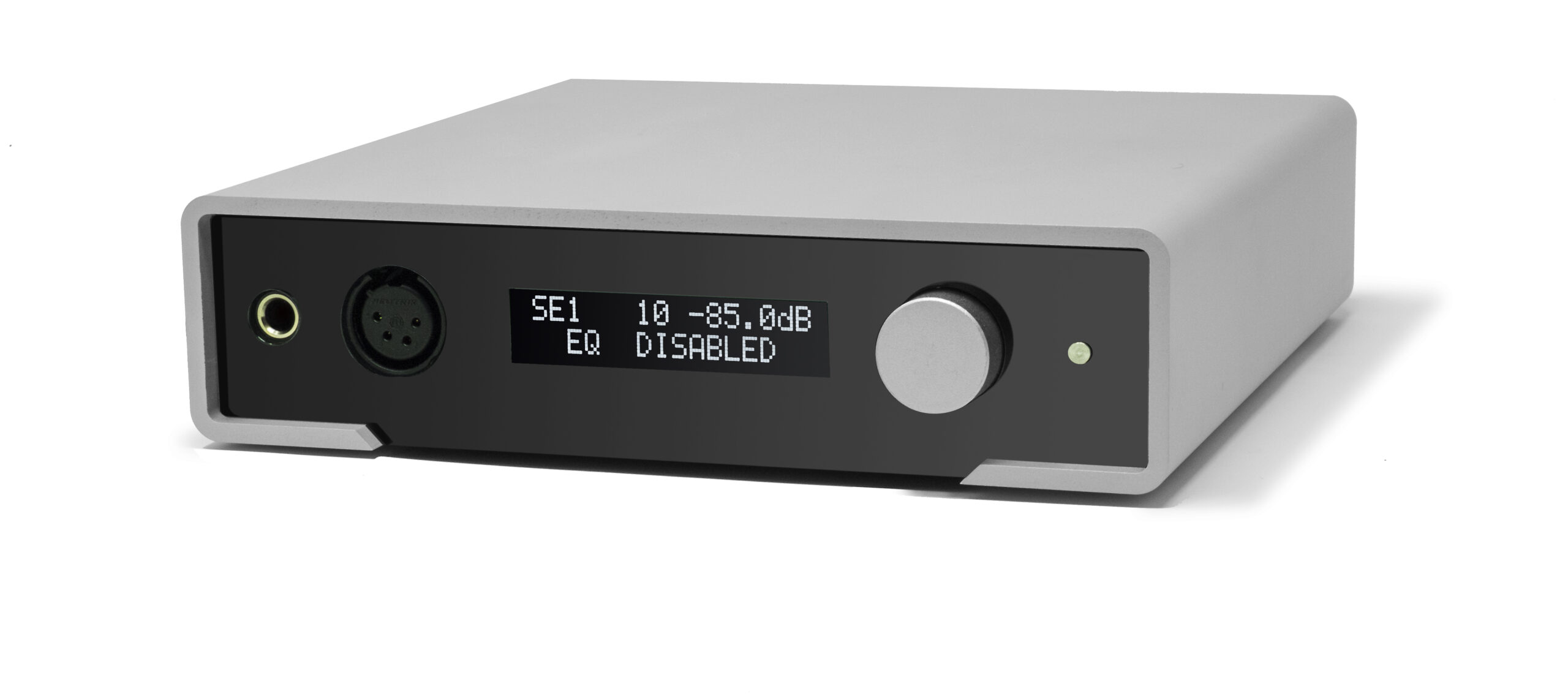

The Marley MkII Rev.b is a high-performance headphone amplifier with everything you need
for first-class headphone listening.

Its low-noise discrete component design with FET input delivers crystal-clear power to every type of headphone.
The total absence of background noise, even with the most sensitive headphones, is guaranteed by a very low noise double regulator.
Up to 10Vrms of max output voltage (20Vrms at balanced output) allow each headphone model to express itself at its best.

The Marley MkII Rev.b is very versatile: apart from the availability of unbalanced and balanced inputs, it features a three-band tone control
to allow the user to match the frequency response of the Marley MkII Rev.b to that of their headphones on their ear. Tone control can be deactivated.
Even old stereo recordings (affected by the so-called “ping pong effect” caused by excessive separation between channels) can be made more enjoyable by activating the cross-feed circuit.
Perfect match with any type of headphones is also achieved by selecting the output impedance between Lo-Z, 10 Ohm and 47 Ohm.
A recorder output and a pre output (which duplicates the unbalanced output on RCA connectors on the rear panel) allow you to use the Marley MkII Rev.b as a true preamp.

The Marley MkII Rev.b can be operated by front panel controls and IR remote control.


Il Marley è un ampli cuffie estremamente preciso e dettagliato, veloce nei transienti, ma al contempo dotato di bassi di qualità...
The Marley is an extremely precise and detailed headphone amp, fast in transients, but at the same time endowed with quality bass...
La valutazione complessiva dell’apparecchio in questione è però altamente positiva, anche in relazione al miglioramento di molti aspetti legati alla realizzazione, ad un approccio “filosofico” meno estremo e più consono all’utilizzo frequente...
However, the overall assessment of the device in question is highly positive, also in relation to the improvement of many aspects related to the construction, to a less extreme ``philosophical`` approach and more suited to frequent use...
Marley MkII, without any question, is a high-end headphone amplifier.....
If you want to listen to music well and don't want to sacrifice a lot of space for a hi- fi system, you can hardly avoid the Rockstars series by Marco Manunta from Manunta Audio....

The Marley MkII Rev.b does its best together with…

Van Der Graaf MkII
Low noise power supply to reach higher peaks of sound quality.
Young MkIV Rev.b
Very high resolution digital-to-analog converter and preamplifier.




5V (trigger)

Input impedance:

47 kOhms (single-ended)
20 kOhms (balanced)

Output impedance:

Lo-Z/10 Ohms/47 Ohms (selectable)

Signal-to-Noise Ratio:

110 dBA (single-ended)
113 dBA (balanced)


0.0008% @ 9 Vrms output into 8 Ohms (single-ended)

Tone controls:

+/-12dB in 1dB steps



Inputs and Outputs


2 x single-ended (RCA)
balanced (XLR)
trigger (3.5mm jack)


single-ended headset (6.35mm jack)
balanced headphones (4-pin XLR female)
recorder (RCA)
preamplifier (RCA)
trigger (3,5mm jack)


Dimensions and Weight


200x200x50mm (WxDxH)


net 2.0kg (including ancillaries)
gross 2.5kg


Output voltage before clipping:

9 Vrms (8 Ohms, Lo-Z)
10 Vrms (300 Ohms, Lo-Z)

Supply voltage:

15 VDC or +15 VDC/-15 VDC/+5 VDC via Van Der Graaf MkII power supply

Power consumption:

33W (9 Vrms into 8 Ohms single-ended)
0,5W (standby)
